Yarn Finishing System

Yarn finishing starts after Ring Till transfer to finished godown.

Selling of yarn: Yarn is sold in a) hank form b) Cone form.

Slub Catcher setting:

Lower the count, higher the slub catcher setting gap. Slub catcher should keep clean, otherwise, fluff will accumulate.

Splicing-Piecing of yarn without knotting.Done by compressor sir, Manual knotting also can be done.

Production calculation

Prod/shift in kg/m/c =Speed of Drum (rpm)*3.14()*Die of Drum (inch)*60*8*efficiency*No. of Drum
 36*840*Count of yarn

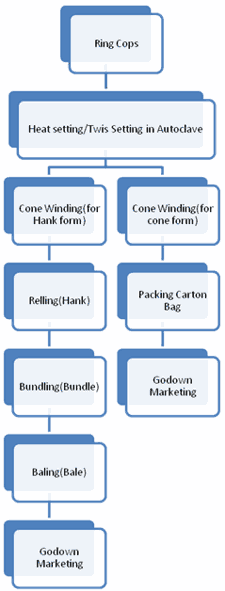

The process sequence of Finishing

Process sequence of finishing

Yarn Twist Setting:

Object: To improve the resistance of the yarn to untwisting and snarling, it is necessary to fix to twist i.e. to bring the yarn into a stabilized state.

Bad/methods mostly used

  • Yarn steaming in an autoclave (with boiler) capacity up to 500 kg/batch. Allowable pressure 7kg/cm(max)
  • High-frequency current by the electrode with high voltage
  • Water treatment conditioning

Cone Winding

From Ring cops to cone by cone winding, ordinary cone winding specifications

  • No. drum/m/c—120
  • Drum Dia—80-95 mm
  • Traverse—150mm-152mm
  • Type of package shape—9 degrees 15
  • Winding speed—500-850m/tm
  • Ribbon breaking device: Electrical on-off type
  • Empty bobbin conveyor at each side with an endless belt
  • Provision for a rack on the top goes m/c for storing ring cops.
  • Stop motion—Auto stop for end breakage with individual spindle control
  • Main motor—each side of the individual motor
  • The speed of winding drum—up to—3500 rpm
  • Overhead blower—for cleaning fly
  • Suction arrangement for slub catcher
  • Splicing device
  • Type of package- Paper or plastic
