Essential Machinery Used in Ring Spinning: A Comprehensive List

Introduction

Ring spinning is a time-tested method for transforming raw fibers into yarn, a foundational step in textile production. The efficiency and precision of this process rely heavily on specialized machinery. In this article, we will provide a comprehensive list of the machinery used in ring spinning, shedding light on their individual functions and contributions to the yarn manufacturing process.

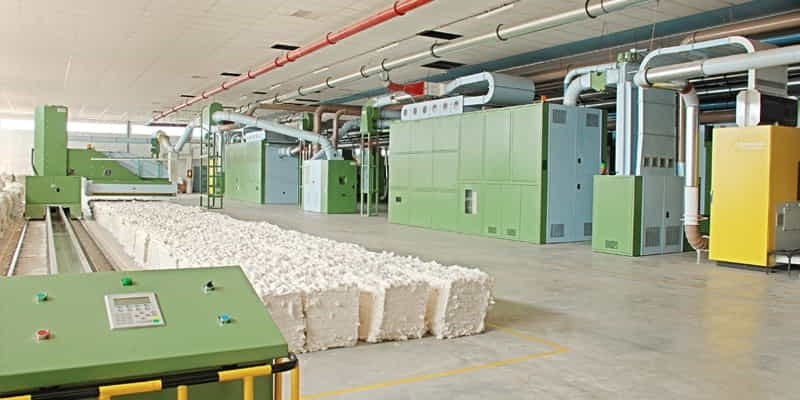

Blowroom Machinery

The output of the blowroom machinery is typically in the form of a homogeneous fiber mass known as a “lap” or “sheet,” which is then fed into the carding machine. The efficiency and effectiveness of the blowroom machinery are critical in ensuring that the fibers are properly prepared for subsequent processing stages, leading to the production of high-quality yarn or fabric in the textile industry.



Blowroom machinery is a crucial set of equipment in the early stages of textile manufacturing, specifically in the preparation and processing of raw fibers. The primary function of blowroom machinery is to open, clean, and blend fibers to create a homogeneous and workable material for subsequent processing. These machines are an essential part of the textile manufacturing process and play a significant role in determining the quality of the final yarn or fabric. Here are some key components and functions of blowroom machinery:

1. Bale Opener:
   • Function: The bale opener is the first machine in the blowroom line. It is responsible for breaking open compressed fiber bales, which typically contain raw cotton, wool, or other staple fibers.
   • Operation: The bale opener uses mechanical means, such as spikes or beaters, to loosen and separate the fibers, making them easier to handle in subsequent stages.
2. Blender:
   • Function: The blender is used to create a homogeneous blend of different fiber types or qualities. It ensures consistent fiber characteristics throughout the batch.
   • Operation: It combines fibers from multiple sources or bales, and through controlled mixing, it achieves the desired blend composition.
3. Cleaner:
   • Function: The cleaner removes impurities, foreign matter, and non-fibrous materials from the opened fibers. This step is essential for producing clean and high-quality yarn.
   • Operation: Various mechanisms, such as air suction, sieving, and beaters, are employed to separate impurities from the fibers.
4. Scutcher:
   • Function: The scutcher further opens and disentangles the fibers, ensuring that they are adequately prepared for the subsequent carding process.
   • Operation: It employs a series of rollers, beaters, and a conveying system to process and align the fibers.
5. Licker-in and Beater:
   • Function: These components in the scutcher help further open and clean the fibers. The licker-in feeds the fibers to the beater, which further separates them and removes impurities.
   • Operation: The licker-in and beater work in conjunction to prepare the fibers for the carding machine.
6. Metal Detector:
   • Function: A metal detector is often integrated into the blowroom machinery to identify and remove any metallic contaminants that may be present in the fiber material.
7. Dust Extraction System:
   • Function: A dust extraction system helps remove dust and fine particles generated during the opening and cleaning processes, contributing to a cleaner working environment and better air quality.

Carding Machine

Carding machines are available in various configurations and sizes to accommodate different fiber types and processing requirements. They play a crucial role in ensuring that fibers are properly prepared, resulting in the production of consistent and high-quality yarn or textile products in the textile industry.



A carding machine is a fundamental piece of equipment in the textile industry, specifically in the process of transforming raw fibers into a continuous, web-like material called a “carded sliver.” Carding is an essential step that prepares the fibers for subsequent processes like spinning. Let’s explore the functions, components, and operation of a carding machine:

Function:

The primary function of a carding machine is to:

1. Open and separate individual fibers.
2. Align and parallelize the fibers.
3. Remove impurities, short fibers, and foreign matter.
4. Create a continuous, uniform web or sliver of fibers.

Components:

A carding machine consists of several key components that work together to achieve its functions:

1. Feed System: The feed system is responsible for delivering a uniform fiber mass to the carding machine. It often includes a feed apron and feed roller to control the flow of fibers.
2. Licker-in: The licker-in is the first element in the carding machine, equipped with card clothing (small wire teeth) to open and tease apart the fiber mass. It also removes some impurities.
3. Main Cylinder: The main cylinder carries a series of carding segments covered with card clothing that further opens and separates the fibers. As the fibers are carded, they form a continuous web on the surface of the main cylinder.
4. Doffer: The doffer is responsible for stripping the carded web from the main cylinder. It can rotate at a different speed than the main cylinder to ensure a smooth transfer of the web.
5. Worker and Stripping Rollers: These rollers help in transferring the carded web from the main cylinder to the doffer.
6. Cleaning Mechanisms: Various cleaning mechanisms, such as flats or clearer rollers, remove remaining impurities, short fibers, and foreign matter from the carded web.
7. Can Coiler: The can coiler winds the carded sliver onto cylindrical cans or bobbins, creating a cylindrical package suitable for further processing.

Operation:

1. Feeding: The raw fiber material is fed into the carding machine, usually in the form of a sheet or lap created in previous processing steps like blowroom machinery.
2. Opening and Teasing: The licker-in, equipped with card clothing, opens and teases apart the fiber mass. This action separates the fibers, making them easier to work with.
3. Carding: The carding process takes place on the main cylinder, where the fibers are further opened, aligned, and parallelized. The card clothing on the main cylinder plays a critical role in this step.
4. Transfer to Doffer: Once carded, the fibers are transferred from the main cylinder to the doffer, where they form a continuous web.
5. Cleaning: Cleaning mechanisms, such as flats or clearer rollers, remove impurities and short fibers from the carded web as it moves along the carding machine.
6. Coiling: The carded sliver is wound onto cylindrical cans or bobbins by the can coiler, creating a continuous package of carded fibers ready for subsequent processing steps, such as drawing and spinning.

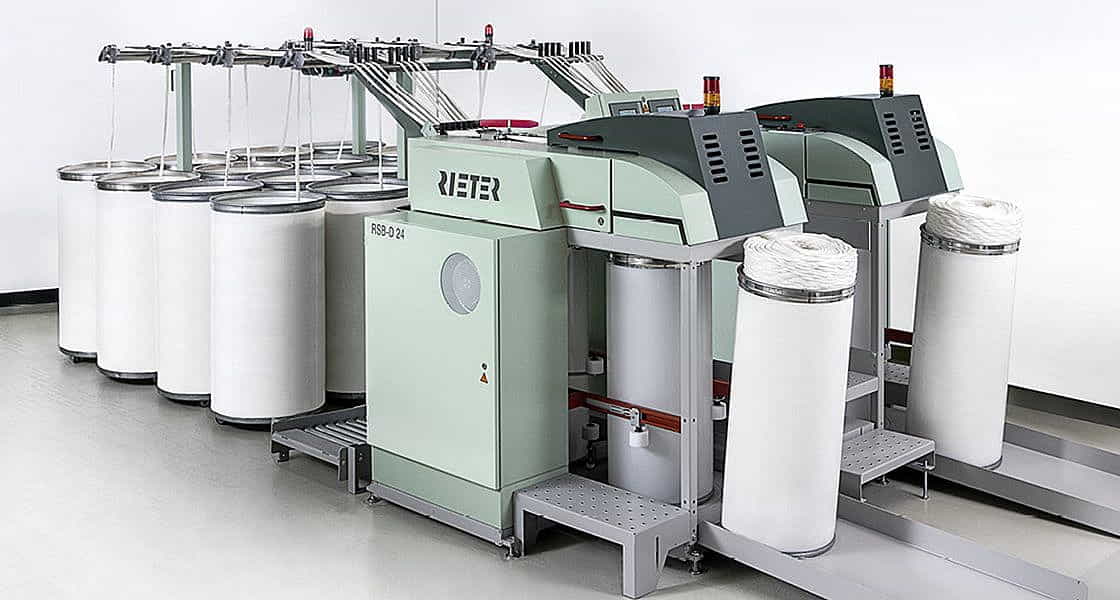

Draw Frame

The draw frame is a critical machine in the textile manufacturing process, ensuring that the fibers are prepared to meet the desired yarn specifications. It plays a pivotal role in improving yarn quality, consistency, and uniformity, which are essential for producing high-quality textile products.



A draw frame is an essential piece of equipment in the textile industry, particularly in the process of converting carded slivers (a web of parallelized and aligned fibers produced by carding machines) into thinner, finer, and more uniform slivers. The primary purpose of a draw frame is to further improve the parallelization and evenness of fibers, ensuring that the yarn produced is of high quality. Let’s delve into the functions, components, and operation of a draw frame:

Function:

The main functions of a draw frame are as follows:

1. Drafting: The draw frame provides controlled drafting or stretching of the carded sliver. Drafting reduces the sliver’s thickness while maintaining the parallel alignment of fibers. This process is critical for achieving the desired yarn count and improving uniformity.
2. Doubling: Draw frames can also double multiple slivers, combining them to create a single, thicker sliver. This process helps achieve the desired sliver thickness or weight.
3. Removal of Irregularities: The draw frame removes any remaining irregularities, thick or thin spots, and minor imperfections present in the carded sliver. This results in a more consistent and uniform sliver.

Components:

A typical draw frame consists of the following key components:

1. Feed Rollers: The feed rollers are responsible for delivering the carded sliver to the draw frame at a consistent speed and tension.
2. Drafting Zone: This zone includes a pair of rollers, usually the front and back rollers, between which the carded sliver passes. The front rollers move faster than the back rollers, creating the drafting action that reduces sliver thickness.
3. Top Comb: The top comb is a set of teeth or pins that comb through the sliver, ensuring that fibers are evenly distributed and aligned before entering the drafting zone.
4. Bottom Comb: Similar to the top comb, the bottom comb ensures uniformity in the sliver’s thickness and alignment before it enters the drafting zone.
5. Delivery Rollers: The delivery rollers control the tension and speed at which the drafted sliver is wound onto a bobbin or package.
6. Doffing Mechanism: The doffing mechanism automates the process of replacing full bobbins with empty ones, allowing continuous production.

Operation:

The operation of a draw frame involves the following steps:

1. Feeding: The carded sliver is fed into the draw frame by the feed rollers. It passes through the top and bottom combs, which ensure uniformity and alignment of fibers.
2. Drafting: In the drafting zone, the front rollers move at a faster speed than the back rollers, causing the sliver to be drawn or stretched. This reduces the sliver’s thickness while maintaining the parallel arrangement of fibers.
3. Doubling (Optional): If needed, multiple drafted slivers can be doubled or combined to achieve the desired sliver thickness or weight.
4. Final Delivery: The drafted and possibly doubled sliver is then wound onto a bobbin or package by the delivery rollers. This package can be further processed in subsequent stages, such as spinning or roving frames.
5. Doffing: When the bobbin or package is full, the doffing mechanism automates the removal of the full package and replaces it with an empty one, allowing for continuous operation.

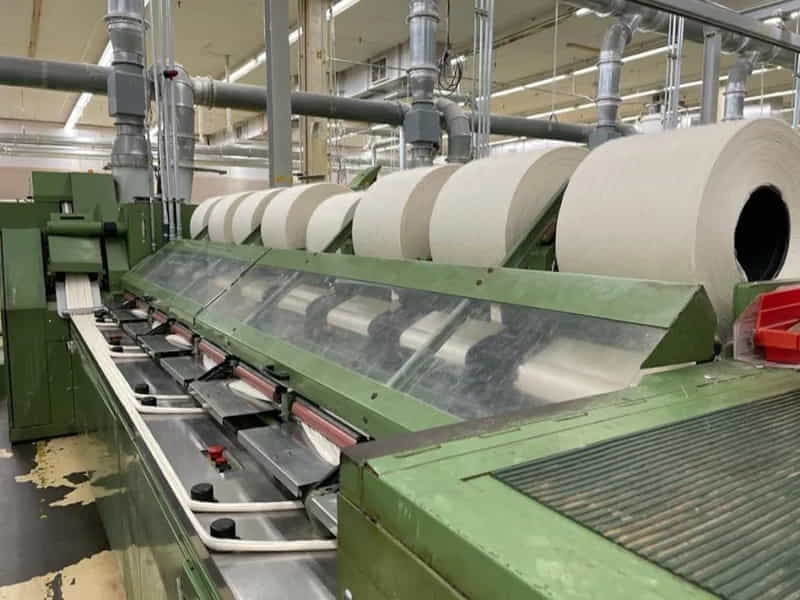

Comber Machine

The comber machine is a critical component in textile manufacturing, especially for producing high-quality yarn. It ensures that the fibers are thoroughly cleaned, parallelized, and refined, resulting in improved yarn quality and performance in the production of textile products.

A comber machine is a crucial piece of equipment in the textile industry, specifically in the process of further refining and preparing fibers for high-quality yarn production. The primary function of a comber machine is to remove short fibers, impurities, and irregularities from the carded sliver (a continuous web of parallelized and aligned fibers produced by carding machines). Combing not only results in cleaner fibers but also produces a finer and more consistent sliver, leading to improved yarn quality. Let’s explore the functions, components, and operation of a comber machine:

Function:

The main functions of a comber machine are as follows:

1. Combing: The comber machine combs through the carded sliver to remove short fibers, neps (small knots of entangled fibers), and impurities. Combing aligns the longer fibers more precisely and parallelizes them, resulting in a higher-quality sliver.
2. Parallelization: Combing ensures that the fibers in the sliver are uniformly parallel, enhancing the overall quality and uniformity of the sliver.
3. Evenness Improvement: The comber machine eliminates variations in thickness or irregularities in the sliver, producing a more consistent and even strand of fibers.

Components:

A typical comber machine consists of several key components that work together to achieve its functions:

1. Feed System: The feed system is responsible for delivering the carded sliver to the comber machine, ensuring a continuous and controlled feed rate.
2. Detaching Rollers: Detaching rollers separate the individual fibers from the incoming sliver, preparing them for combing.
3. Combing Zone: This zone includes a set of combs and circular brushes that comb through the sliver. The combs catch short fibers, impurities, and neps, while the brushes help align and parallelize the longer fibers.
4. Nep Eliminators: Nep eliminators are specialized devices that remove neps and impurities caught by the combs, preventing them from re-entering the processed sliver.
5. Top Comb: The top comb is positioned above the fibers and helps maintain alignment and parallelization as they are combed.
6. Bottom Comb: Similar to the top comb, the bottom comb assists in maintaining the uniformity and parallelization of fibers.
7. Circular Knife: A circular knife is used to trim and remove the combed fibers, leaving behind only the desired, high-quality fibers.
8. Doffer: The doffer is responsible for stripping the combed fibers from the circular combs and delivering them to the next processing stage.

Operation:

The operation of a comber machine involves the following steps:

1. Feeding: The carded sliver is continuously fed into the comber machine by the feed system, ensuring a consistent flow of fibers.
2. Combing: In the combing zone, the sliver passes through the combs and circular brushes. The combs catch short fibers, neps, and impurities while parallelizing the longer fibers.
3. Nep Removal: Nep eliminators remove the neps and impurities collected by the combs, preventing their inclusion in the final sliver.
4. Circular Knife: A circular knife trims and removes the combed fibers, leaving behind only the clean and parallelized fibers.
5. Doffing: The doffer strips the combed fibers from the combs and delivers them as a refined and cleaner sliver, which can be wound onto bobbins or packages for subsequent processing, such as spinning.

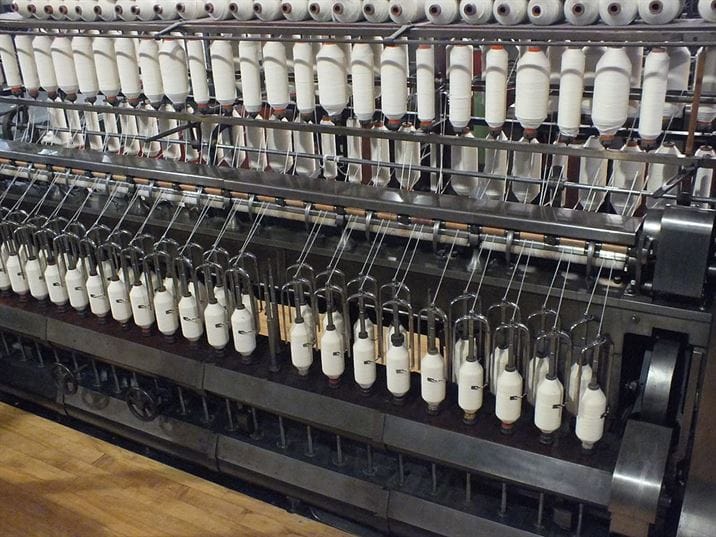

Ring Spinning Machine

The ring spinning machine is a versatile and widely used tool in the textile industry, capable of producing various types of yarn, from fine to coarse, and accommodating different fiber types. It plays a crucial role in the production of high-quality yarn, making it a cornerstone of textile manufacturing.

A ring spinning machine is a fundamental piece of equipment in the textile industry, specifically in the process of transforming prepared fibers into yarn. This machine is widely used for producing yarn of various types and counts and is known for its versatility and ability to produce high-quality yarn. Let’s explore the functions, components, and operation of a ring spinning machine:

Function:

The primary function of a ring spinning machine is to convert a continuous strand of prepared fibers into yarn. It accomplishes this by:

1. Drafting: The ring spinning machine provides controlled drafting or stretching of the fiber strand, reducing its thickness while maintaining the parallel alignment of fibers. Drafting is essential for achieving the desired yarn count and strength.
2. Twisting: The machine imparts twist to the drafted fiber strand. Twist adds strength to the yarn, prevents it from unraveling, and determines the yarn’s characteristics, such as its texture, strength, and appearance.
3. Winding: The twisted yarn is wound onto a bobbin or package, creating a cylindrical package of yarn suitable for subsequent processes.

Components:

A typical ring spinning machine consists of several key components:

1. Creel: The creel is where bobbins or cans containing the drawn fiber strands are mounted. These bobbins serve as the source material for the yarn.
2. Drafting System: The drafting system comprises rollers that pull and elongate the fiber strand, reducing its thickness while maintaining parallelization. Proper drafting is critical for achieving the desired yarn characteristics.
3. Spinning Ring: The spinning ring is a crucial component that holds the yarn strand, provides tension, and imparts twist to the fibers as they are drawn through it. Modern spinning rings are often made of ceramics to minimize friction and wear.
4. Traveller: The traveller is a small, rotating metal ring that moves around the spinning ring. It guides the yarn strand and facilitates the twisting process, ensuring that the yarn is wound onto the bobbin evenly.
5. Bobbin: The bobbin is where the newly spun yarn is wound. As the yarn is formed, it is wound onto the bobbin in a conical shape, creating a package of yarn ready for further processing or storage.
6. Spindle: The spindle is responsible for driving the rotation of the traveller and the spinning ring. It provides the necessary twist to the fibers.
7. Doffing Mechanism: The doffing mechanism automates the process of removing full bobbins from the machine and replacing them with empty ones, allowing continuous production.

Operation:

The operation of a ring spinning machine involves the following steps:

1. Feeding: The prepared fiber strand is fed into the machine from the creel, where it is mounted on bobbins.
2. Drafting: In the drafting zone, the fiber strand passes through a series of rollers that pull and elongate it, reducing its thickness and ensuring uniformity.
3. Twisting: As the drafted fiber strand moves through the spinning ring, the traveller rotates around the spinning ring, imparting twist to the fibers. This twist adds strength to the yarn.
4. Winding: The twisted yarn is wound onto a bobbin, creating a cylindrical package of yarn.
5. Doffing: When the bobbin is full, the doffing mechanism automatically removes it and replaces it with an empty bobbin, allowing continuous production.

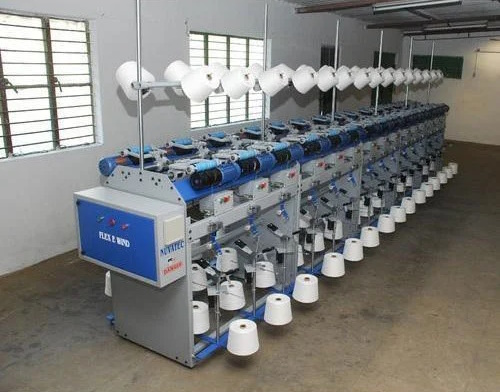

Winding Machine

Winding machines are essential in textile production, as they enable the transformation of yarn from one form to another while ensuring consistent quality and tension control. Their versatility makes them suitable for various types of yarn and package sizes, making them a vital part of the textile manufacturing process.

A winding machine is an integral piece of equipment in the textile industry, primarily used to transfer yarn or thread from one type of package to another, ensuring that the yarn is in the desired form for subsequent processing or end use. Winding machines play a critical role in producing uniform, tension-controlled packages of yarn suitable for various textile applications. Let’s explore the functions, components, and operation of a winding machine:

Function:

The primary functions of a winding machine are as follows:

1. Yarn Transfer: Winding machines transfer yarn from one type of package (such as cones, tubes, or bobbins) to another type of package (such as cones, cheese, or cylindrical packages). This allows for the customization of package types to meet specific production needs.
2. Tension Control: Winding machines ensure proper tension control during the winding process to prevent stretching or breaking of the yarn. Maintaining consistent tension is essential for producing high-quality yarn packages.
3. Package Formation: Winding machines wind the yarn onto packages in an organized and uniform manner, facilitating easy unwinding during subsequent processes.
4. Doffing: Many winding machines feature automatic doffing mechanisms that remove full packages and replace them with empty ones, allowing for continuous production.

Components:

A typical winding machine consists of several key components:

1. Feed Package Stand: This is where the source package of yarn (e.g., cone, bobbin, or tube) is placed for unwinding.
2. Tensioning Device: Tensioners, guides, and tension control systems ensure that the yarn is wound onto the new package with consistent tension.
3. Winding Drum or Traverse Mechanism: The winding drum or traverse mechanism moves the yarn back and forth across the package, ensuring even distribution of the yarn layers and creating a uniform package.
4. Package Holder: The package holder secures the new package (e.g., cone or cheese) onto which the yarn is wound.
5. Yarn Guide: Yarn guides direct the yarn from the source package to the winding package.
6. Yarn Monitoring Sensors: Sensors may be integrated to monitor the yarn tension, thickness, or defects during winding, allowing for real-time quality control.
7. Doffing Mechanism: Automatic doffing systems remove full packages and replace them with empty ones, allowing for continuous operation.

Operation:

The operation of a winding machine involves the following steps:

1. Preparation: The source package of yarn is placed on the feed package stand, and the new package (e.g., cone or cheese) is mounted on the package holder.
2. Yarn Thread-up: The yarn is threaded from the source package through the yarn guide and tensioning device to the new package.
3. Winding: The winding drum or traverse mechanism moves the yarn back and forth across the package as it winds onto the new package. Tension is carefully controlled to ensure uniform winding.
4. Doffing: When the new package is full or the desired amount of yarn is wound, the automatic doffing mechanism removes it, and an empty package is mounted in its place.
5. Monitoring: Some winding machines are equipped with sensors to monitor yarn quality and tension throughout the winding process, allowing for quality control and adjustments as needed.
6. Package Removal: The full package can be removed from the winding machine for further processing or storage.

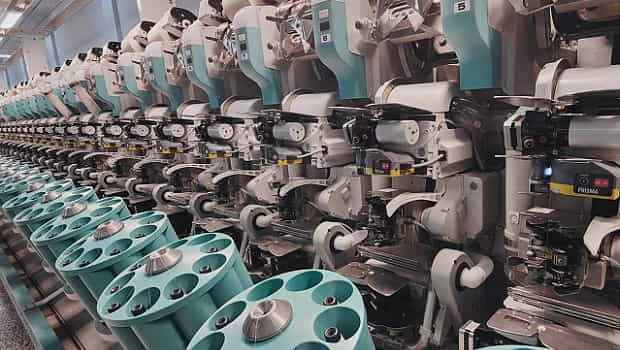

Yarn Clearer

Yarn clearers are essential tools in modern textile production, ensuring that yarn meets quality standards and minimizing the production of substandard or defective yarn. They contribute significantly to the overall quality and consistency of textile products.



A yarn clearer is a critical device used in the textile industry to monitor the quality of yarn during the spinning process and to detect and remove any defects or irregularities. It plays a crucial role in ensuring the production of high-quality yarn by identifying and eliminating substandard yarn sections. Let’s explore the functions, components, and operation of a yarn clearer:

Function:

The primary functions of a yarn clearer are as follows:

1. Yarn Monitoring: Yarn clearers continuously monitor the yarn as it is being produced for various quality parameters, including yarn thickness, count, evenness, and the presence of defects.
2. Defect Detection: Yarn clearers are equipped with sensors and detectors that can identify defects such as thin places, thick places, neps (small knots of fibers), slubs (thick and soft spots), and foreign matter in the yarn.
3. Quality Control: When a defect or irregularity is detected, the yarn clearer takes corrective action to either remove the defective portion of the yarn or stop the spinning process, depending on the severity of the issue.
4. Reporting: Yarn clearers often provide real-time data and reports on yarn quality, enabling textile manufacturers to track and improve the quality of their production.

Components:

A typical yarn clearer consists of several key components:

1. Sensors: These sensors are responsible for measuring various yarn parameters, such as thickness, count, and evenness, and for detecting defects in the yarn.
2. Control Unit: The control unit processes the data from the sensors and makes decisions based on predefined quality parameters. It determines whether corrective action is required.
3. Mechanical Actuators: In some cases, yarn clearers are equipped with mechanical actuators that can take action based on the detected defects. For example, they may cut or remove the defective portion of the yarn.
4. Display and Reporting System: Yarn clearers often have a display screen and reporting system that provide real-time data on yarn quality, defects, and production statistics.

Operation:

The operation of a yarn clearer involves the following steps:

1. Monitoring: Yarn is continuously monitored as it passes through the yarn clearer. Sensors collect data on various yarn parameters and defects.
2. Data Processing: The control unit processes the data received from the sensors, comparing it to predefined quality parameters and defect detection criteria.
3. Defect Detection: If a defect or irregularity is detected that exceeds acceptable quality limits, the control unit takes corrective action.
4. Corrective Action: Depending on the severity of the defect, the yarn clearer may take different actions:
   • For minor defects, it may activate mechanical actuators to remove the defective portion of the yarn.
   • For more severe defects, it may stop the spinning process, cut the yarn, and initiate cleaning procedures to remove foreign matter or impurities.
   • In some cases, the yarn clearer may simply mark the defective section for later removal.
5. Reporting: The yarn clearer provides real-time reports on yarn quality, defects, and any corrective actions taken. This information helps textile manufacturers maintain quality control and make necessary adjustments.

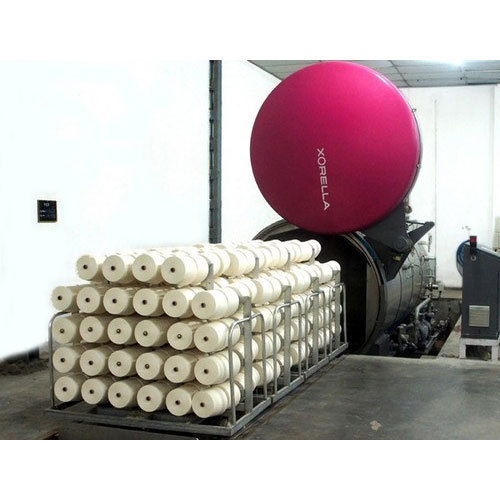

Yarn Conditioning Machine

The choice of conditioning method depends on the type of yarn, fiber content, moisture requirements, and available equipment. Properly conditioned yarn is essential for achieving the desired quality and efficiency in textile manufacturing processes, ensuring that the yarn performs optimally during subsequent operations.

Yarn conditioning is a crucial process in the textile industry that involves treating yarn with moisture or steam to achieve specific moisture content levels and relax the fibers. This process is essential for improving the yarn’s quality, making it more suitable for downstream processes like weaving, knitting, and dyeing. Let’s explore the functions, benefits, and methods of yarn conditioning:

Function:

The primary functions of yarn conditioning are as follows:

1. Moisture Adjustment: Yarn conditioning is used to control and adjust the moisture content of the yarn. Different fibers have different ideal moisture levels for processing and maintaining their physical properties.
2. Fiber Relaxation: The conditioning process relaxes the fibers within the yarn, reducing tension and minimizing stress. This relaxation is especially important for natural fibers like cotton, which can be stiff and brittle when dry.
3. Improved Processability: Conditioned yarn is more flexible and pliable, making it easier to handle during subsequent processes such as weaving, knitting, and dyeing.
4. Reduced Breakage: By reducing fiber stress and brittleness, yarn conditioning helps prevent yarn breakage during downstream processes and improves overall production efficiency.

Benefits:

The benefits of yarn conditioning include:

1. Enhanced Yarn Quality: Conditioning improves the overall quality and performance of the yarn, resulting in smoother and more consistent textile products.
2. Reduced Waste: Conditioning helps minimize yarn breakage and defects, reducing waste and improving production yield.
3. Consistency: Conditioned yarn ensures uniform moisture content and fiber relaxation, leading to more consistent and predictable processing outcomes.
4. Improved Dyeing: Properly conditioned yarn is more receptive to dyeing and results in more vibrant and even dye penetration.

Methods:

There are several methods for yarn conditioning, depending on the type of fiber and the equipment available. Common methods include:

1. Steam Conditioning: Yarn is exposed to steam in a controlled environment, allowing it to absorb moisture and relax. Steam conditioning is particularly effective for natural fibers like cotton.
2. Humidification Chambers: Yarn can be placed in humidification chambers or rooms where the relative humidity is controlled to achieve the desired moisture content.
3. Moisture Meters: Moisture meters are used to measure the moisture content of the yarn. Based on these measurements, moisture can be added or removed as needed to achieve the desired level.
4. Spraying or Damping: In some cases, water or a water-based solution can be sprayed or applied directly to the yarn to add moisture.
5. Steaming Cans: Steaming cans or chambers can be used in a batch process to treat yarn with steam, allowing it to absorb moisture and relax.
6. Tension Relaxation: Sometimes, simply allowing the yarn to rest at a controlled tension in a humid environment can achieve the desired conditioning effect.

Yarn Inspection Machine

Yarn inspection machines are essential tools in modern textile manufacturing, ensuring that yarn meets quality standards and minimizing the production of substandard or defective yarn. They contribute significantly to the overall quality and consistency of textile products.

A yarn inspection machine is a specialized piece of equipment used in the textile industry to examine yarn for defects, irregularities, and quality issues. It plays a critical role in quality control during the production of yarn, ensuring that the final product meets the required standards and specifications. Yarn inspection machines are equipped with various sensors and cameras to detect and record defects and are capable of inspecting yarn at high speeds. Let’s explore the functions, components, and operation of a yarn inspection machine:

Function:

The primary functions of a yarn inspection machine are as follows:

1. Defect Detection: Yarn inspection machines are designed to identify defects and irregularities in the yarn, including but not limited to thin places, thick places, neps (small knots of entangled fibers), slubs (thick and soft spots), foreign matter, and color variations.
2. Quality Control: These machines ensure that the yarn produced adheres to quality standards and specifications. They identify substandard sections of yarn that do not meet the required quality criteria.
3. Real-time Monitoring: Yarn inspection machines provide real-time monitoring and feedback, allowing for immediate corrective actions in the production process if defects are detected.
4. Data Logging: The machines record data related to defects and irregularities, which can be used for quality analysis, process improvement, and reporting.

Components:

A typical yarn inspection machine consists of the following key components:

1. Sensors: Yarn inspection machines are equipped with various sensors, such as cameras, photodetectors, and laser sensors, to detect defects and irregularities in the yarn.
2. Lighting Systems: Adequate lighting is essential for capturing clear and detailed images of the yarn. Different lighting setups may be used to enhance defect visibility.
3. Conveyor or Guiding System: Yarn is guided through the machine at a controlled speed and tension to ensure proper inspection.
4. Data Processing Unit: The machine’s data processing unit receives data from sensors, processes it, and makes determinations regarding the presence of defects or irregularities.
5. Display and Reporting System: Yarn inspection machines often have a display screen for real-time inspection results and may generate reports for quality control purposes.

Operation:

The operation of a yarn inspection machine involves the following steps:

1. Yarn Feeding: The yarn is fed into the inspection machine, usually at high speeds, to simulate the production process.
2. Defect Detection: As the yarn passes through the machine, sensors and cameras capture images and data. Algorithms analyze this data to detect defects, irregularities, and quality issues.
3. Data Processing: The data processing unit compares the captured images and data to predefined criteria and quality standards. If a defect is identified, the machine triggers an alert or takes appropriate action.
4. Display and Reporting: Inspection results are displayed in real-time on the machine’s screen. Reports may be generated for quality control purposes, providing information on defect types, locations, and quantities.
5. Corrective Actions: Depending on the severity of defects and the machine’s capabilities, it may trigger actions such as stopping the production line, marking defective sections, or initiating cleaning processes.

Coning Machine

Coning machines are vital tools in textile production, enabling the transformation of yarn from larger packages to smaller, more manageable ones while ensuring consistent quality and tension control. They help textile manufacturers prepare yarn for various downstream processes, such as weaving, knitting, and dyeing, contributing to the overall efficiency and quality of textile products.

A coning machine, also known as a cone winding machine, is an essential piece of equipment in the textile industry. Its primary function is to transfer yarn from larger packages, such as cones or cheeses, onto smaller, more manageable cones or tubes. Coning machines play a crucial role in textile production, as they prepare yarn for various downstream processes and facilitate ease of handling and storage. Let’s explore the functions, components, and operation of a coning machine:

Function:

The primary functions of a coning machine are as follows:

1. Yarn Transfer: Coning machines transfer yarn from larger packages, often in the form of cones, cheeses, or cylindrical packages, onto smaller cones or tubes. This allows for better handling and reduces the risk of damage or tangling during subsequent processes.
2. Package Formation: Coning machines wind the yarn onto new cones or tubes in a uniform and organized manner, ensuring consistent package density and tension.
3. Package Size Adjustment: By transferring yarn onto smaller packages, coning machines can adjust the package size to meet specific production or customer requirements.

Components:

A typical coning machine consists of several key components:

1. Creel: The creel holds the source packages of yarn (e.g., cones or cheeses) and delivers them for unwinding.
2. Tensioning Devices: Tensioners, guides, and tension control systems ensure that the yarn is wound onto the new cones or tubes with consistent tension.
3. Winding Drum or Traverse Mechanism: The winding drum or traverse mechanism moves the yarn back and forth across the cone or tube, ensuring even distribution of the yarn layers and creating a uniform package.
4. Package Holder: The package holder secures the new cones or tubes onto which the yarn is wound.
5. Yarn Guide: Yarn guides direct the yarn from the source package to the winding package.
6. Yarn Monitoring Sensors: Sensors may be integrated to monitor yarn quality, tension, or thickness during winding, allowing for real-time quality control.

Operation:

The operation of a coning machine involves the following steps:

1. Preparation: The source packages of yarn (e.g., cones or cheeses) are placed on the creel, and the empty cones or tubes are mounted on the package holder.
2. Yarn Thread-up: The yarn is threaded from the source package through the yarn guide and tensioning devices to the new cones or tubes.
3. Winding: The winding drum or traverse mechanism moves the yarn back and forth across the cone or tube as it winds onto the new package. Tension is carefully controlled to ensure uniform winding.
4. Monitoring: Some coning machines are equipped with sensors to monitor yarn quality, tension, or thickness throughout the winding process, allowing for real-time quality control.
5. Doffing: When the new cones or tubes are filled to the desired level, they are removed from the machine, and empty ones are mounted in their place.

Tensioning Device

Tensioning devices are essential components in a wide range of industries and applications where precise tension control is necessary to achieve high-quality and consistent output while minimizing material waste and downtime.

A tensioning device is an essential component in various industrial processes, including textile manufacturing, where it is used to control and maintain the tension (force or pull) applied to materials such as yarn, fibers, wires, or other continuous materials. Tension control is crucial for ensuring consistent and high-quality output in processes like spinning, weaving, knitting, wire drawing, and more. Let’s explore the functions, types, and applications of tensioning devices:

Functions:

The primary functions of a tensioning device are as follows:

1. Tension Control: Tensioning devices regulate and maintain the desired level of tension on the material being processed. Proper tension control is critical for achieving uniform and high-quality end products.
2. Preventing Breakage: Tension control helps prevent material breakage or damage during processing, reducing waste and production downtime.
3. Guidance: Tensioning devices often work in conjunction with guiding systems to ensure that the material follows a specific path or trajectory through the processing machinery.

Types:

There are several types of tensioning devices used in various industries, and the choice of device depends on the specific application. Some common types include:

1. Spring Tensioners: Spring-loaded tensioners use a coiled spring to apply a constant force to the material. Adjustments can be made by changing the spring’s compression or tension.
2. Magnetic Tensioners: Magnetic tensioners use magnetic fields to control tension. They are often used in wire drawing and other applications requiring fine tension control.
3. Pneumatic Tensioners: Pneumatic tensioners use compressed air to control tension. By adjusting the air pressure, operators can control the tension applied to the material.
4. Electronic Tensioners: Electronic tensioners use sensors and control systems to monitor and adjust tension in real-time. They offer precise and automated tension control and are common in modern textile machinery.
5. Weight-Loaded Tensioners: In some applications, weights or gravity are used to provide tension. The material passes over a weighted pulley, creating the desired tension.

Applications:

Tensioning devices are used in various industries and applications, including:

1. Textile Manufacturing: Tensioning devices are crucial in processes like spinning, weaving, knitting, and winding to ensure consistent yarn or fiber tension.
2. Wire and Cable Production: In wire drawing and cable manufacturing, tension control prevents wire breakage and ensures the desired diameter and quality of the wire or cable.
3. Paper and Film Processing: Tensioning devices are used to control the tension on paper, films, and foils during printing, coating, and converting processes.
4. Metalworking: Tension control is vital in metal processing, such as rolling, stamping, and slitting, to prevent material deformation or breakage.
5. Packaging: Tensioning devices are used in packaging machinery to maintain proper tension on packaging materials, ensuring consistent wrapping and sealing.
6. Printing: In printing presses, tensioning devices ensure that paper or web materials are fed consistently, preventing paper jams and ensuring accurate printing.
7. Conveyors: Tensioning devices are used in conveyor systems to control the tension on belts, chains, and other conveying elements.

Package Transportation Systems

Package transportation systems are designed to optimize the flow of goods and materials, reduce manual handling, minimize errors, and improve the overall efficiency of supply chains and manufacturing processes. The choice of system depends on the specific needs and requirements of the facility or industry.

Package transportation systems are integral components of manufacturing, warehousing, distribution, and logistics operations that facilitate the movement of goods and products from one location to another within a facility. These systems are designed to automate and streamline the transportation of packages, improving efficiency, reducing labor costs, and enhancing overall productivity. There are various types of package transportation systems, each tailored to specific industries and applications. Let’s explore some common types and their functions:

1. Conveyor Systems:

• Belt Conveyors: These are the most common type of conveyor system, utilizing a continuous belt to transport packages. They are versatile and used in various industries, including manufacturing and distribution centers.
• Roller Conveyors: These conveyors use rollers to move packages. They are often employed for heavier loads or in applications where packages need to be accumulated or sorted.
• Gravity Conveyors: Gravity conveyors use a slight incline or decline to move packages under the force of gravity. They are cost-effective for simple transportation needs.

2. Automated Guided Vehicles (AGVs):

• AGVs are mobile robots equipped with sensors, cameras, and navigation systems. They can transport packages autonomously, following predefined paths or navigating based on real-time data. AGVs are commonly used in warehouses, factories, and distribution centers.

3. Pneumatic Tube Systems:

• These systems use air pressure differentials to transport small packages and documents through a network of pneumatic tubes. They are often found in hospital settings for transporting samples and medications quickly.

4. Overhead Monorail Systems:

• Overhead monorail systems consist of a single suspended track on which carriers move packages from one location to another. They are used in industries like automotive manufacturing and paint shops.

5. Automated Storage and Retrieval Systems (AS/RS):

• AS/RS combines storage and transportation by using robotic cranes to retrieve and deliver packages to and from storage locations. They are common in large-scale distribution centers and warehouses.

6. Sortation Systems:

• Sortation systems are used to divert packages to different destinations based on their characteristics, such as size, weight, or destination. They use conveyors with diverters, pushers, or sensors to route packages to the correct location.

7. Carton and Tote Handling Systems:

• These systems specialize in moving cartons or totes filled with packages. They are often used in e-commerce order fulfillment centers.

8. Spiral Conveyors:

• Spiral conveyors transport packages in a continuous, upward or downward spiral motion. They are used in applications where vertical transportation is required within a limited footprint.

9. Shuttle Systems:

• Shuttle systems consist of robotic shuttles that move horizontally within a rack structure, retrieving and delivering packages to specific storage locations. They are used in high-density storage applications.

10. Chute Systems: – Chute systems use gravity to slide packages from one level to another. They are often employed in mailrooms and distribution centers.

Electronic Monitoring Systems

Electronic monitoring systems play a critical role in ensuring the efficiency, quality, and consistency of yarn spinning processes. They provide valuable data for process optimization, quality control, and maintenance, ultimately contributing to the production of high-quality yarn while minimizing waste and downtime.

Electronic monitoring systems are essential tools in modern yarn spinning processes, providing real-time data and insights to optimize yarn production, enhance quality control, and minimize downtime. These systems use electronic sensors, data collection devices, and software to monitor various aspects of the spinning process. Here are some key areas where electronic monitoring systems are commonly used in yarn spinning:

1. Process Monitoring:

• Spindle Speed Monitoring: Electronic sensors track the speed and performance of individual spindles, ensuring that they operate within specified parameters. Deviations from the desired spindle speed can indicate issues that need immediate attention.
• Tension Control: Sensors measure and maintain the tension in the yarn as it passes through various stages of the spinning process, preventing breaks and ensuring consistent quality.
• Yarn Thickness Monitoring: Sensors monitor the thickness or diameter of the yarn as it is spun, helping to maintain uniformity and identify variations that could affect yarn quality.

2. Quality Control:

• Yarn Evenness Measurement: Electronic monitoring systems assess the evenness of the yarn by detecting variations in thickness along its length. This data helps identify and correct irregularities.
• Yarn Strength Testing: Sensors are used to measure the tensile strength of the yarn, ensuring that it meets the desired strength requirements.
• Yarn Hairiness Analysis: Hairiness refers to the presence of loose fibers on the surface of the yarn. Monitoring systems assess and report on yarn hairiness, which can affect yarn quality and downstream processes.
• Defect Detection: High-resolution cameras and sensors are employed to detect defects such as thin places, thick places, neps, and slubs in the yarn. This information helps identify and eliminate substandard yarn sections.

3. Maintenance and Predictive Analytics:

• Spindle Health Monitoring: Electronic monitoring systems can track the condition of spindles and detect signs of wear or malfunction, allowing for timely maintenance or replacement.
• Downtime Analysis: Data collected by these systems can be used for downtime analysis, helping operators identify the causes of stoppages and take corrective actions to minimize disruptions.
• Predictive Maintenance: By analyzing data trends, electronic monitoring systems can predict when maintenance is likely to be needed, reducing unplanned downtime and increasing equipment lifespan.

4. Data Logging and Reporting:

• Data Storage: Electronic monitoring systems store historical data related to yarn production, quality, and equipment performance, enabling manufacturers to track trends and make informed decisions.
• Real-time Reporting: These systems provide real-time reports and alerts to operators and management, allowing for immediate responses to deviations or quality issues.

5. Energy Efficiency:

• Energy Consumption Monitoring: Electronic monitoring systems can measure and report on the energy consumption of spinning machines, helping manufacturers optimize energy use and reduce operational costs.

Yarn Splicing Machine

Yarn splicing machines are indispensable tools in textile manufacturing, contributing to the production of high-quality, knot-free yarn while reducing waste and minimizing production interruptions. The choice of splicing machine depends on factors such as yarn type, production volume, and specific process requirements.

A yarn splicing machine is a specialized piece of equipment used in the textile industry to join two ends of yarn together seamlessly, creating a continuous length of yarn without knots or interruptions. This process is known as yarn splicing or yarn joining, and it is essential for maintaining the quality of the yarn and ensuring smooth, uninterrupted production. Yarn splicing machines are commonly used in various stages of textile production, including spinning, weaving, and knitting. Here’s an overview of their functions, types, and operation:

Functions:

The primary functions of a yarn splicing machine are as follows:

1. Yarn Joining: Yarn splicing machines are designed to join two ends of yarn together to create a continuous length of yarn. This is typically done by intermingling or fusing the fibers of the two yarn ends.
2. Knot-Free: Yarn splicing ensures that the yarn remains knot-free, eliminating the need for manual knot tying, which can weaken the yarn and disrupt the production process.
3. Quality Maintenance: By creating seamless joins, these machines help maintain the overall quality and consistency of the yarn, preventing defects and ensuring uniformity.
4. Reduced Waste: Yarn splicing reduces yarn waste by utilizing even short yarn ends, contributing to cost savings and sustainability in textile manufacturing.

Types:

There are several types of yarn splicing machines, each suited to specific yarn types and production processes:

1. Air Splicers: Air splicers use compressed air to join yarn ends. The ends are prepared and placed in a splicing chamber, where a burst of air intermingles the fibers, creating a strong bond.
2. Water Splicers: Water splicers utilize water jets to splice yarn ends. The yarn ends are brought together in a water chamber, where high-pressure water jets entangle the fibers and form a splice.
3. Knotter Splicers: Knotter splicers use mechanical knots or loops to join yarn ends. These knots are typically less bulky and more uniform than manually tied knots.
4. Ultrasonic Splicers: Ultrasonic splicers use high-frequency vibrations to heat and fuse the fibers of yarn ends together, creating a strong bond. This type is often used for synthetic and blended yarns.
5. Mechanical Splicers: Mechanical splicers mechanically twist or interlock yarn ends together, avoiding the use of heat or air pressure.

Operation:

The operation of a yarn splicing machine depends on its type and design. However, the general process involves the following steps:

1. Preparation: The ends of the two yarn sections to be joined are prepared by trimming any damaged or irregular portions to ensure a clean splice.
2. Positioning: The prepared yarn ends are positioned in the splicing chamber or nozzle of the machine, ready for splicing.
3. Splicing: Depending on the type of splicing machine, the splicing process is initiated. This may involve the release of compressed air, the activation of water jets, the creation of a mechanical knot, or the application of ultrasonic energy.
4. Completion: Once the splice is formed, the resulting continuous length of yarn is ready for use in textile production processes such as weaving, knitting, or spinning.

Yarn Testing Equipment

Yarn testing equipment plays a critical role in maintaining the quality and performance of yarn products throughout the textile manufacturing process. It helps manufacturers meet customer requirements, minimize defects, and optimize production processes. The choice of testing equipment depends on the specific properties and characteristics of the yarn being tested.

Yarn testing equipment is essential in the textile industry for assessing the quality, characteristics, and performance of yarns. These specialized instruments and devices help manufacturers ensure that their yarn products meet the required standards and specifications. Yarn testing equipment is used to measure various properties of yarn, including its strength, evenness, appearance, and elongation. Here are some common types of yarn testing equipment and their functions:

1. Strength Testing Equipment:

• Tensile Testing Machines: These machines measure the tensile strength and elongation of yarns by subjecting them to controlled stretching until they break. The data obtained helps determine yarn quality and suitability for specific applications.
• Single Yarn Strength Tester: Specifically designed for measuring the breaking strength of individual yarns, this tester provides information on the yarn’s inherent strength.

2. Evenness and Twist Testing Equipment:

• Yarn Evenness Tester: This equipment measures variations in yarn thickness, helping assess the evenness of the yarn. Uneven yarn can lead to fabric defects during weaving or knitting.
• Twist Tester: Twist testing equipment measures the twist level in yarns, which is crucial for determining yarn stability and performance in subsequent processes.

3. Count Testing Equipment:

• Yarn Count Tester: Yarn count is a measure of the fineness or thickness of yarn. Count testing equipment determines the count (denier, tex, or other units) of yarn, ensuring it meets specified requirements.

4. Appearance and Color Testing Equipment:

• Yarn Appearance Tester: This equipment evaluates the visual appearance of yarn, identifying defects such as neps, slubs, or foreign matter.
• Color Matching Cabinets: Used for color assessment, these cabinets provide standardized lighting conditions to ensure accurate color matching of dyed yarns.

5. Yarn Hairiness and Friction Testing Equipment:

• Yarn Hairiness Tester: Hairiness testing equipment measures the amount and length of loose fibers on the yarn’s surface, which can impact yarn quality and downstream processes.
• Yarn Friction Tester: Friction testers assess the frictional properties of yarn, helping manufacturers understand how yarn will behave during weaving or knitting.

6. Moisture Content Testing Equipment:

• Moisture Meters: Moisture meters measure the moisture content of yarn, which is crucial for ensuring yarn quality and consistency in various atmospheric conditions.

7. Abrasion and Pilling Testing Equipment:

• Abrasion Testers: These machines simulate the effects of abrasion on yarns to assess their durability and resistance to wear.
• Pilling Testers: Pilling testers evaluate the tendency of yarn to form pills (small balls of fiber) on fabric surfaces, providing insights into fabric quality.

8. Yarn Fault Detection Systems:

• Yarn Inspection Systems: These automated systems use cameras and sensors to detect and classify yarn faults, such as thin places, thick places, neps, and slubs, for quality control and process optimization.

9. Package Testing Equipment:

• Package Testing Instruments: These instruments assess the quality of packages containing wound yarn, ensuring that they meet packaging and storage standards.
