Bearing Structure of a Weaving Machine

0 1,357

The weaving machines are composed of two side frames in cast iron or steel, which are connected each other by cross members so as to create a firm bearing structure which can limit the vibrations and offer a good stability. The bearing structure of a weaving machine is a critical component that provides support and stability to various moving parts involved in the weaving process. Weaving machines are complex pieces of equipment used in the textile industry to interlace warp and weft yarns to create fabric. The bearing structure ensures the proper alignment and functioning of these moving parts, which is essential for producing high-quality textiles.

Introduction

The weaving machines are composed of two side frames in cast iron or steel, which are connected each other by cross members so as to create a firm bearing structure which can limit the vibrations and offer a good stability.

The machine members are covered by easily removable casings which protect them from dust and offer a passive safety to the operators.

The manufacturers have focussed their attention in last years on the study and on the analysis of the machine behavior at high running speeds; this permitted to optimize the movements and the balancing of the main members of the loom, as well as to reduce the vibrations transmitted to the floor and to the structure and consequently the noise.

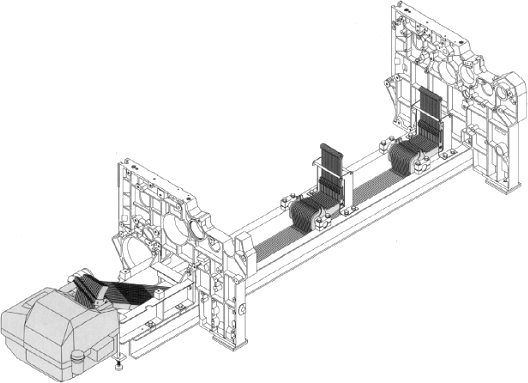

The figure presents part of a bearing structure of a weaving machine; you can note the two side frames and the basis on which the dobby with the linkage for the heald control is applied. The figure shows instead the full structure of a weaving machine with various already installed components.

Skeleton of a weaving machine



Components of the Bearing Structure

  1. Machine Frame:
    • The machine frame serves as the main structural support for the entire weaving machine. It is typically made of heavy-duty materials like cast iron or steel to provide stability and minimize vibrations during operation.
  2. Pillars or Uprights:
    • Pillars or uprights are vertical support structures attached to the machine frame. They provide additional rigidity and support to the machine, especially in high-speed weaving machines.
  3. Beams:
    • Beams are horizontal structural elements that connect the pillars or uprights. They provide lateral stability to the machine. The warp beam and cloth beam are critical components of the weaving machine and are attached to the beams.

Functions of the Bearing Structure

  1. Supporting Moving Parts:
    • Weaving machines have several moving parts, including the shuttle, harnesses, reed, and beat-up mechanism. The bearing structure supports these components and ensures they operate smoothly and precisely.
  2. Minimizing Vibration:
    • Vibration can affect the quality of the woven fabric and the longevity of the machine. The bearing structure is designed to minimize vibrations by providing a stable foundation for the moving parts.
  3. Maintaining Alignment:
    • Proper alignment of the warp and weft threads is crucial for producing fabric with consistent patterns and quality. The bearing structure helps maintain the alignment of these threads throughout the weaving process.

Specific Bearing Structures in Weaving Machines

  1. Shuttle Box:
    • In shuttle weaving machines, a shuttle box houses the shuttle, which carries the weft yarn across the warp. The shuttle box is designed to move smoothly and precisely within the bearing structure to ensure accurate weft insertion.
  2. Harness Mounting:
    • The harnesses or frames that hold the heddles and control the warp yarns are mounted on the bearing structure. The harness mounting must provide a stable platform for the harnesses to move up and down to create shed patterns.
  3. Reed Mounting:
    • The reed, a comb-like structure that beats the weft yarn into place, is mounted within the bearing structure. It must move uniformly to maintain the proper fabric density and beat-up action.

Importance of a Robust Bearing Structure

A well-designed and robust bearing structure is essential for the following reasons:

  • Precision: It ensures that all moving parts work with precision, resulting in high-quality fabrics with consistent patterns and minimal defects.
  • Durability: A strong bearing structure prolongs the lifespan of the weaving machine by reducing wear and tear on components and minimizing the risk of structural damage.
  • Efficiency: It contributes to the overall efficiency of the weaving process by minimizing vibrations and maintaining alignment, allowing for higher weaving speeds.
  • Safety: A stable bearing structure enhances the safety of the weaving machine, reducing the risk of accidents and injuries to machine operators.

The bearing structure of a weaving machine is a foundational element that plays a crucial role in the production of textiles. It provides support, stability, and alignment to the moving parts of the machine, ensuring the creation of high-quality fabrics efficiently and safely. Manufacturers continually strive to design and engineer robust bearing structures to meet the demands of modern weaving technology.
